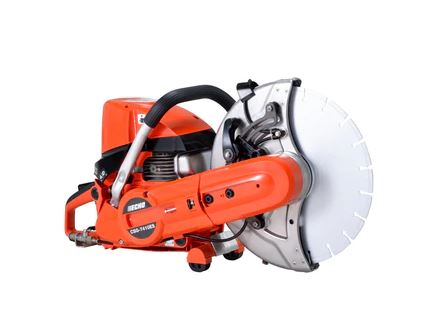

The ECHO CSG-7410ES has the highest cutting torque in its class to achieve exceptional performance and tackle tough jobs.
With a full complement of professional features, one of the best air cleaner systems in the industry and the best warranty available, you really can depend on the CSG-7410. The high-power 73.5cc 2-stroke commercial-grade engine makes hardscaping a breeze.
New 73.5cc two-stroke engine chrome cylinder and patented KaniboronTM piston plating provides friction reduction as well as superior wear and heat resistance. The two-ring piston offers a gas-tight seal with the cylinder, this is essential in high compression engines and ensures maximum power. Magnesium crankcase for light weight and high strength.
The brass water valve controls the flow of water to the cutting wheel. Couple this with the industry leading heavy duty 4-stage air filter and your engine has the best protection from dust and debris on the market.
The CSG-7410ES has the highest cutting torque in its class due to its 2.6:1 drive ratio. Drive ratio is the ratio of the wheel pulley diameter to the drive pulley diameter. The higher the ratio the more torque is developed at the wheel. This means it's easier to cut thick masonry blocks or dense concrete and less likely that the unit will get bogged down in the cut.
|Engine displacement (cm³)||73.5|
|Dry Weight (kg) (undefined)||10.7|
|Fuel Tank Capacity (ml)||700|
|Fuel Consumption At Maximum Engine Power (L/h)||2.1|
|Start Assist System||ES-Start Decomp|
|Applicable Blade Diameterc (inch / mm)||12"|
|Installable Size Of Blade Inner Diameter (mm) (undefined)||20|
