Wessex ATV MOWER AR SERIES ROTARY

  • Sale
  • Regular price £3,750.00
Tax included.


If you want to add the

  • AR-RWK   - rear wheel kit (AR120/150 only) for £456 and/or the
  • WX-6756XL   -  Extended throttle cable for UTVs (4.5m) for £90
Then please contact us at Anthony@thelawnmowercentre.co.uk or 01361 882159  so that we can arrange the appropriate invoice.

AR-120

  • Cutting width 1.2m
  • Overall width/side wheels 1.7m
  • Cutting height range 25-140mm
  • Weight 218kg

AR-150

  • Cutting width 1.5m
  • Overall width/side wheels 2.0m
  • Cutting height range 25-140mm
  • Weight 241kg

AR-180

  • Cutting width 1.8m
  • Overall width/side wheels 2.3m
  • Cutting height range 25-140mm
  • Weight 329kg

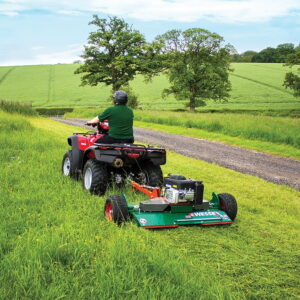

A Wessex AR rotary ATV mower is the first choice for paddock topping & maintaining regularly mown grass areas. Well suited to general pasture topping or fine turf work, the Wessex AR quad bike mower is popular on farms, studs and private estates, and will complement an ATV, utility vehicle or 4 x 4. Available in 1.2m, 1.5m and 1.8m working widths, & with a variety of engine sizes, the AR Series ATV mower is robust and durable machines ideally suited to private estates, farms, and studs. Standard machines are fitted with side-mounted wheels, which allow ground contours to be followed accurately without scalping. However, if a machine is required to mow close to borders and fences etc, the optional rear wheel configuration is available on the 1.2m and 1.5m models only. With wheels behind the machine, the weight on the ball hitch is greatly increased, therefore when using a rear wheeled machine, the towing vehicle must have adequate weight capacity on the drawbar. If the towing vehicle has inadequate drawbar capacity, the third wheel option is available. The entire weight of the AR quad bike mower is now on its own wheels and the drawbar is floating.

AR ROTARY ATV MOWER, CHOOSE FROM;

  • Standard side-mounted wheels
  • 12.5hp  or 13hp Briggs & Stratton engine and electric start option
  • In-line rear wheels (for cutting right to the edge)
  • The drawbar can easily be off-set to one side, to allow the machine to cover one wheel of towing vehicle
  • All models of this ATV mower feature three overlapping rotors to eliminate uncut strips of grass and rigid cutterbar blades for durability
  • Drive is transmitted to the rotors via two vee-belts and a centrifugal clutch. Both belts are tensioned simultaneously by one simple sliding action of the engine mounting bracket.
  • The height of cut is set by repositioning the wheels by means of a spring-loaded pin mechanism on the wheel brackets. A turnbuckle on the drawbar allows the machine to be levelled at any cutting height.
